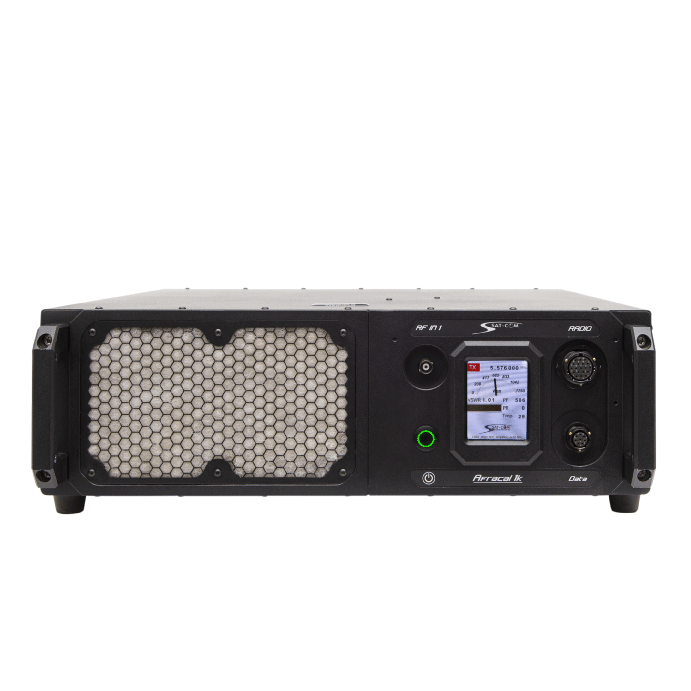

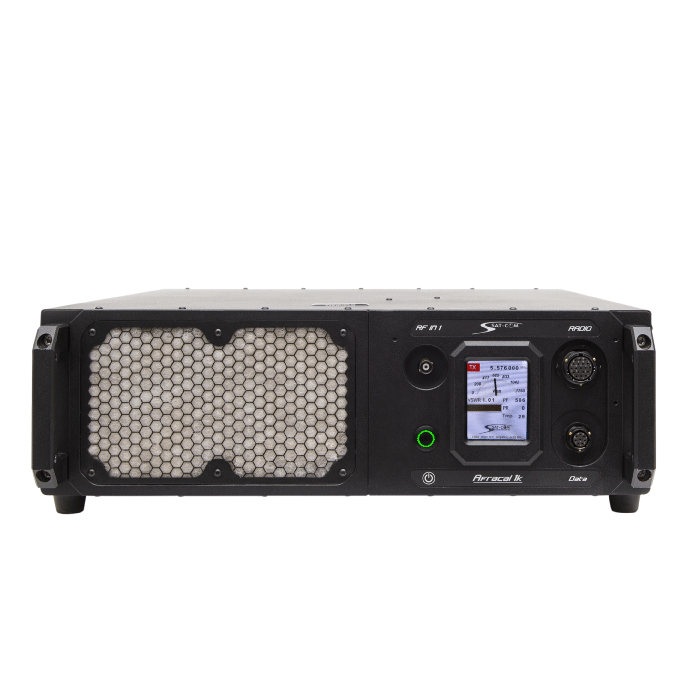

AFRACAL 1k Military Amplifier

http://www.sat.com.na/web/image/product.template/56090/image_1920?unique=8291176

Afracal Wideband Military SDR Radio family

HF - 1.6MHz to 30MHz (1000W)

The Afracal 1k is a High Power Amplifier providing communication for strategic long distance missions.

The amplifier covers the 1.6-30 MHz HF band at a typical 1000W output.

Low-pass-filter switching is controlled by both the Radio and Afracal logic to ensure seamless performance.

NAD 0.00 0.0 NAD NAD 0.00

NAD 0.00

This combination does not exist.

SPECIFICATIONS


    Operation Cycle: Continuous

    Gain Amp: 13dB ±1dB

    Harmonic Suppression: >55dB (typical)

    Max Load Mismatch: VSWR 1: 5

    Power Source: 110 - 220V AC

    Power Connector: 62IN-12E-14-5P

    RF Input ConnectorBNC - Female


    RF Input/Output: 50 Ohm

    Tuner Connector: 62IN-5005-10-7S

    Dimensions: 474x137mmx611 (w x h x d)

    Weight: 25kg (typical)

    Power Consumption:

    - 220VAC 20A

    - 110VAC 41A

    RF Output Connectors: N-Type Female 2x


    Protection: Temperature, VSWR

    Intercom Interface: Via radio handset connector

    Aux Connector: 62IN-5024-14-19S

    Data Connector: 62IN-5005-10-8S

    Tuner Interface: RS 232 / RS 485

----------------------------------------------------------

    RF Output Power:  1000W PEP

COMPACT DESIGN

The Afracal 1k is the most compact 1 kW HF amplifier on the market, occupying only 3U in a 19” rack configuration.

SET-UP

Set-up is automatically controlled by the connected radio.

COOLING

Continuous operation even in the most demanding environments is ensured by liquid cooling. The overall size is reduced due to the superior cooling resulting in a market leading size of only 3U. This is ideal for compact base and naval systems.

DATA

High data rates can be maintained due to the exceptional linearity.

POWER SUPPLY

The Afracal 1k amplifier can operate on 110 - 220VAC or can be provided  in a 48V DC version with external power supply. The connected radio is supplied with a stable 12VDC simplifying power supply configurations and reducing cabling.

ATU

The Afracal 1k - RF Amplifier facilitates a connection to external high power antenna tuners converting radio RS232 to robust RS485 control signals for extended installation distances between the amplifier and the tuner.

INSTALLATION

The amplifier is designed to be mounted in a 19” Rack but is also available as a table top version. Purpose built base station and vehicular mount racks are available.
