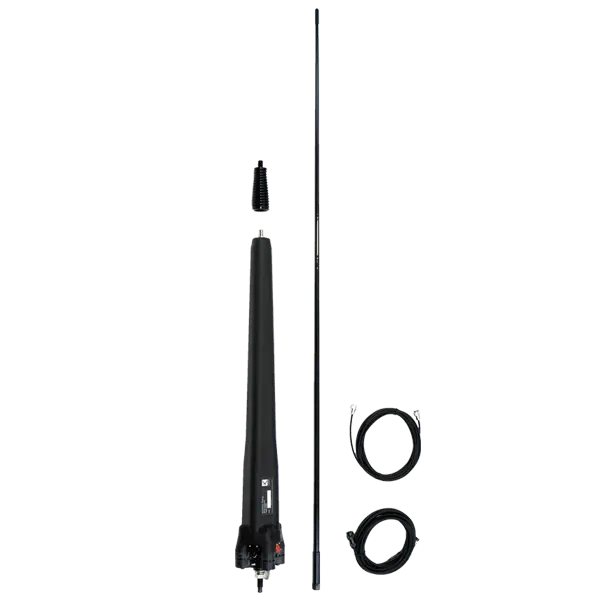

Antenna - HF Mobile Tuning Whip

This HF tuning antenna is the only mobile whip antenna featuring fully automatic tuning over the entire 1.6-30MHz HF band permitting maximum utilization of multichannel HF transceiver specifications and available spectrum resources. With outstanding RX and TX performance and extremely fast tuning, communication from the HF tuning mobile antenna resembles operation from a broadband HF-dipole. With extremely low RF insertion, this antenna is a best-in-class mobile antenna capable of high duty cycle RF power handling required for long sessions of voice, e-mail, and data transmission.

The HF tuning antenna is implemented in a compact self-contained form factor that simplifies mounting on all types of vehicles. Installation is facilitated through a wide selection of mounting brackets, installation kits, and cable length options.

• MILITARY APPLICATIONS, SOFT SKIN, APC
• NEAR INDESTRUCTIBLE DESIGN
• FLEXIBLE INTERFACE
• HIGH POWER HANDLING
• HIGH EFFICIENCY

SKU# ANT-HST-TW

FEATURES LIST

• Frequency Range: 1.6 to 30MHz Transmit, 100KHz-54MHz Receive
• Power Rating: 125W CW/DATA, 200W PEP SSB (Voice)
• Input Impedance Range: 50Ω
• VSWR: Typical=1.3:1
• DC Input Requirement: Tuning Speed New CH: 0.16 sec (min.), 1.8 sec (max.) Memory CH: 0.35 seconds average
• DC Operating Range: 10-16VDC, 12V nominal from transceiver or battery
• Memory Channels: 200 RAM, 200 EEPROM
• Tune Power: External 3-30W PEP (3-200W in Smart Tune)
• Power Consumption: 1.8 A tuning, 85-140 mA static
• Integral Wide Band Amplifier Gain: 3 dB, IP3 ≥26dBm
• Interface: UHF socket MIL-DTL501, 8 pin/ USB / 3xTTL/UART/RS-485
• Protection: Reverse polarity, short circuit, lightning, Induced RF power, over-voltage
• Operating Temperature Range: -40°C to +60°C
• Environmental: Meets MIL-STD-810G, Shock (516.6), Vibration(514.6), IP 68 Immersion 1.2m/1h
• EMC/EMI: Meets MIL-STD-461, IEC/EN 61000
• Wind Rating: 210km/h (130 M/h)
• Mounting: M16x45mm stud
• Weight and Dimensions: 5.2 kg, 100x100x840(2490)mm
• Options/Accessories: NVIS KIT
• Color: Olive Drab (black optional)
