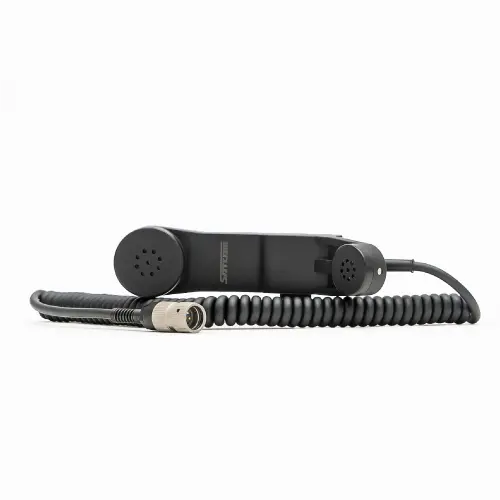

Handset
Standard Military 6-PIN U329
SPEAKER SPECIFICATIONS
MICROPHONE SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
SPEAKER SPECIFICATIONS
|
Type: |
Transducer Moving coil dynamic SPK |
|
Impedance: |
300Ω±15% @1KHZ |
|
Sensitivity: |
115dB±3DB at 1K at 1mw |
|
Frequency response: |
200-4KHZ |
|
Rated input power: |
0.1W |
|
Maximum input power: |
0.2W |
MICROPHONE SPECIFICATIONS
|
Type: |
Transducer Moving coil dynamic MIC
|
|
Sensitivity Range: |
-58± 3dB @1KHZ
|
|
Impedance Max: |
150Ω±15% at 1kHz
|
|
Frequency: |
200-4KHz
|
ENVIRONMENTAL CONDITIONS
|
Operating Temperature: |
-30 °C~75 ° |
|
Relative Humidity: |
<96%
|
