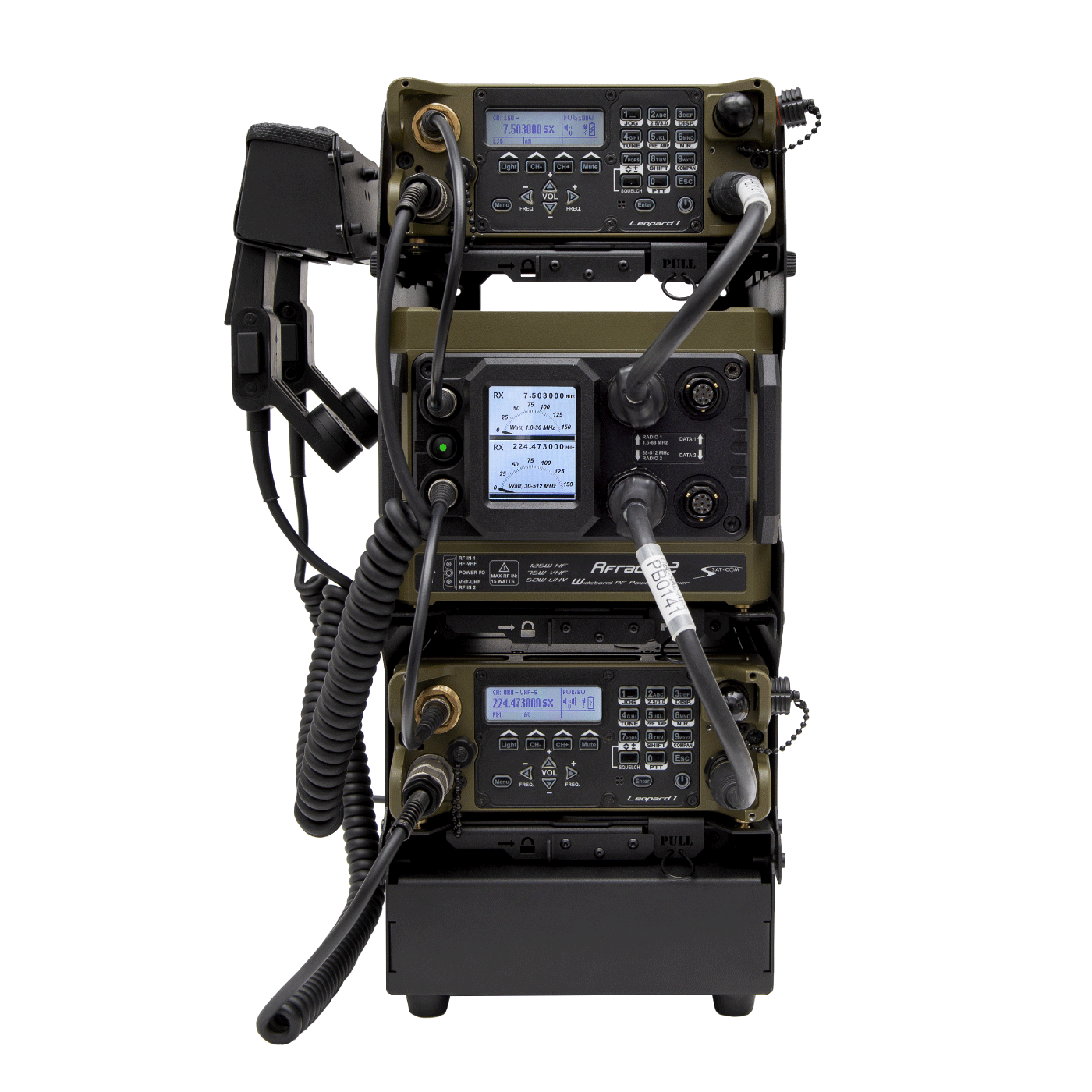

Leopard 1 High Power Repeater / Re-Bro

The Satcom radios are all capable of being connected to any other Satcom radio via a cross-connect cable for combinations of Crossband or Re-Bro Systems

• Leopard 1 – Leopard 1 HF – VHF/UHF
• Leopard 1 – Cheetah 3 HF – VHF/UHF
• Cheetah 3 – Cheetah 3 VHF – UHF

In Cross-Connect Mode,  audio is routed straight through (Transparent) to allow COMSEC (Secure Digital Voice) to be used via the repeater/re-bro.

FEATURES LIST

Performance:

• Re-Bro Frequency Range: 1.6 – 30 to 30 – 88 or 88 – 170/512 Mhz
• RX sensitivity: -112dBm
• TX Power: HF 1.6-30 -up to 125W
• TX Power: VHF 30-88 -up to 100W
• TX Power: V/UHF 88 – 170 / 512* up to 100W
• Power Supply: 10-32Vdc

System Recommended Options:

Power Supply:

• For a semi/permanent repeater system, the Satcom Repeater PSU unit SKU# PS-PB-R is recommended which includes a 12V AC- DC and DC SOLAR Charger.
• Up to 3 x 120W Flexible Solar panels can be connected to the power Box, however, any DC up to 18V can be connected to charge the Repeater Battery.
• The AC input Range is 160 – 270 Vac to charge the battery.
• The Repeater Battery could be 100 – 200 Ahr @ 12V depending on the required mission or UP time expected with available sun hours for the location.

Antennas:

• For HF the following Antenna is recommended:
  • Wide Band HF DIPOLE (1.6-30 Mhz)
• For VHF the following Antenna is recommended:
  • Wide Band VHF Disc Cone (30-88 Mhz)
  • Narrow Band Option: Dipole Stack or Co-Linear
• For V/UHF the following Antenna is recommended:
  • Wide Band V/UHF Disc Cone (100-512 Mhz)
  • Option: Dipole Stack or Co-Linear
