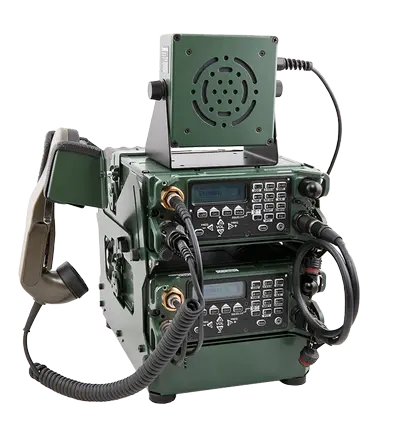

Leopard 1 Low Power Repeater / Re-Bro
Deployment Options:
The Satcom radios are all capable of being connected to any other Satcom radio via a cross-connect cable for combinations of In-Band repeaters.
- Leopard 1 – Leopard 1
- Leopard 1 – Cheetah 3
- Cheetah 3 – Cheetah 3
The Satcom radios are all capable of being connected to any other Satcom radio via a cross-connect cable for combinations of Crossband or Re-Bro Systems
- Leopard 1 – Leopard 1 HF – VHF/UHF
- Leopard 1 – Cheetah 3 HF – VHF/UHF
- Cheetah 3 – Cheetah 3 VHF – UHF
In Cross-Connect Mode, audio is routed straight through (Transparent) to allow COMSEC (Secure Digital Voice) to be used via the repeater/re-bro.
FEATURES LIST
Performance:
- Re-Bro Frequency Range: 1.6 – 170 / 512* Mhz
- Repeat Frequency Range: 30-170 / 512* Mhz with 5-8Mhz Split incl Duplexer
- Repeat Frequency Range: 30-170 / 512* Mhz with 30 Mhz Split without Duplexer
- RX sensitivity: -112dBm
- TX Power: VHF 30-88 -up to 18W
- TX Power: V/UHF 88 – 170 / 512* up to 10W
- Power Supply: 10-32Vdc
System Options:
Power Supply:
- For a semi/permanent repeater system, the Sat-Com Repeater PSU unit SKU# PS-PB-R is recommended, which includes a 12V AC- DC and DC SOLAR Charger.
- Up to 3 x 80W Flexible Solar panels can be connected to the power Box, however, any DC up to 18V can be connected to charge the Repeater Battery.
- The AC input Range is 160 – 270 Vac to charge the battery.
- The Repeater Battery could be 100 – 200 Ahr @ 12V depending on the required mission or UP time expected with available sun hours for the location.
Antennas:
- For HF the following Antenna is recommended:
- Wide Band HF DIPOLE (1.6-30 Mhz)
- Narrow Band Option: Vertical HF Whip (Radio Tuner Engaged)
- For VHF the following Antenna is recommended:
- Wide Band VHF Disc Cone (30-88 Mhz)
- Narrow Band Option: Dipole Stack or Co-Linear
- For V/UHF the following Antenna is recommended:
- Wide Band V/UHF Disc Cone (100-512 Mhz)
- Option: Dipole Stack or Co-Linear
