External Speaker
The

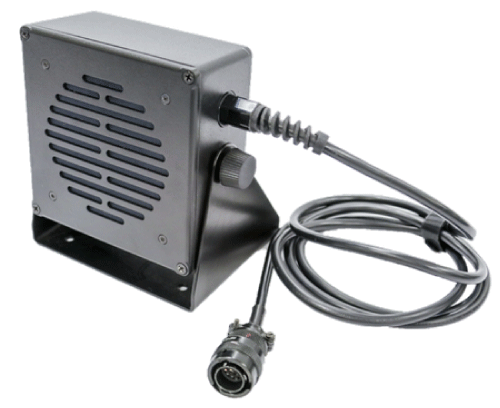

External Speaker rated 15W, is waterproof (IP65) and is mounted in an epoxy powder-coated aluminum housing.
The connector at the cable end would either be to connect to the Afracal Amplifiers, or directly to the Leopard1 manpack radio depending on the equipment configuration it is ordered.
The Speaker box is fitted with a mounting base with angle adjustment capability.
FEATURES LIST
- Rated Power Handling: 20W
- Maximum Power handling: 30W
- Freq Response: 100 – 13,000 Hz
- SPL Nominal: 85dB
- Tilt adjust
- Connector 1:Leopard Manpack – 5 pin
- Connector 2: Afracal 2 – 62IN-56TG-12-14P
- Weight : 1000g
- Dimensions: 150 x 150 x 100 mm
