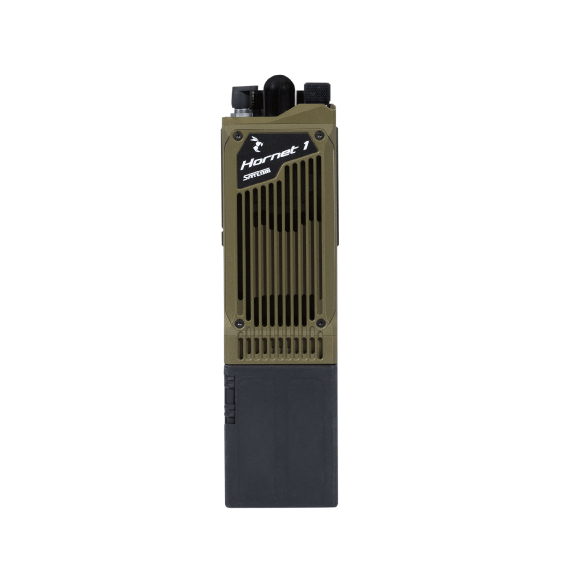

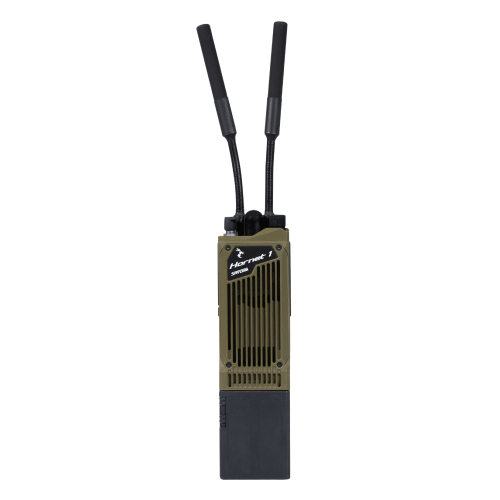

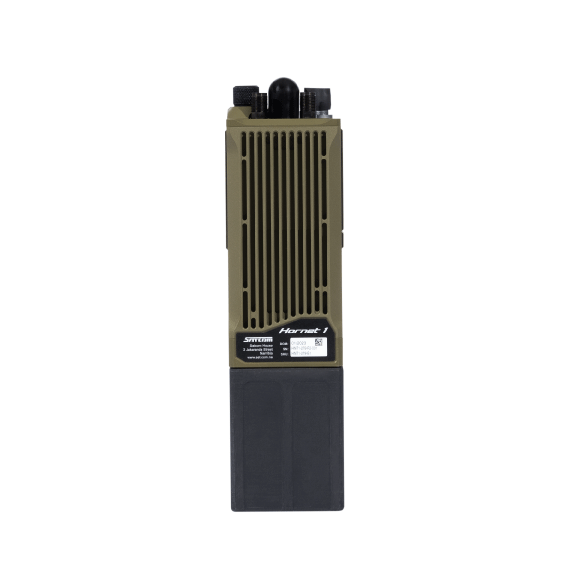

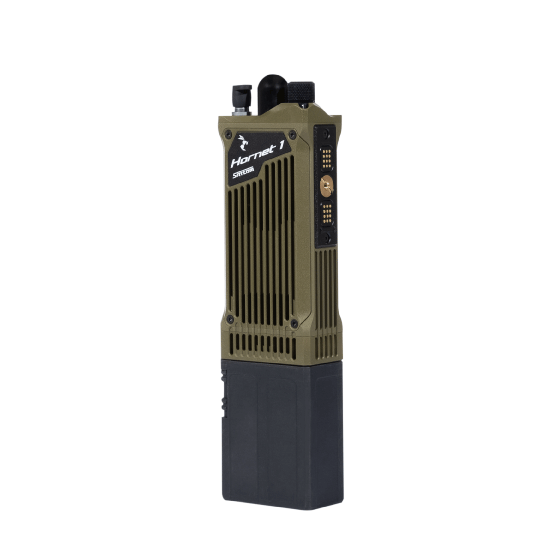

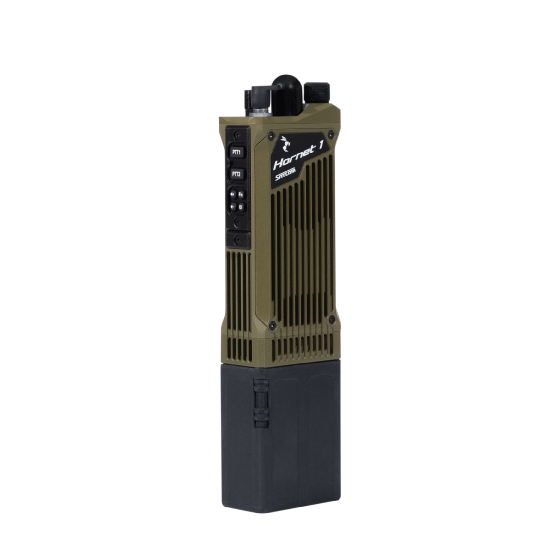

HORNET 1 MIMO/MANET SDR Radio
The Hornet 1 SDR meets modern battlefield requirements in flexibility, COMSEC, TRANSEC and Broadband Capabilities.
It is based on state of the art MIMO (Multiple Input, Mulltiple Output) IP Mesh technology providing simultaneous encrypted Voice and Data/Video capability. The Mesh capability enables self-forming and self-healing network establishment of up to 64 nodes per network in any configuration.
Depending on the SNR level and required data throughput, data bandwidth is automatically varied from 0.5 to 87 Mbps. This is achieved by increasing the frequency bandwidth from 1.25 up to 20MHz and switching modulation techniques that function at up to 64QAM.
10 Pre-programmed mission profiles can be configured for rapid operator selection while providing two independent full duplex audio (voice) channels. The Dual 1W RF output power transceivers achieves single link distances of up to 1.5km for non-line-of-sight (NLOS), while LOS distances beyond 15km are achievable between elevated sites or air to ground links.
The Hornet 1 accessory battery capacity is designed to keep radios operational for up to 5 hours. The radio itself has a built in battery which ensures continuation of existing links while a flat battery is replaced for a charged one.
SPECIFICATIONS
FEATURE SUMMARY
Frequency Range: 1.98-2.70 GHz (other Frequency models available on request)
Channel: 10 Programmable
Power Source: 12VDC (nom) 8-18VDC (operational)
RF Impedance: 50-ohm nominal, unbalanced
Dimensions:
-72w x 265h x 40d (including Battery)
-72w x 177h x 40d (excluding Battery)
Weight:
-550g (excluding Battery)
-920g (including Battery)
Interface:
-Handset
-Rotary Channel Select (10 positions)
-Hot-shoe (USB, Ethernet, RS232,IO x5,Audio In x2, Audio Out x2, DC out, DC in)
-TNC x2
-SMA (GPS)
-Buttons (PTT x2, Volume Up + Down, function, programmable)
A/F Power + Distortion:
-Internal Speaker 1W in 8ohm, THD 10%
-Headset Out, up to 1W 4-250ohm, THD 1%
Battery Capacity: 72Wh, 11.1V Nom.w
Expected Mission Time: 12hours (Voice Data) with 74Wh Battery
STANDARDS
Environmental: MIL-STD-810H
Temperature:
-20 to +65degC Operation, 501.5/502.5
-30 to +85degC Storage, 501.5/502.5
Shock:
-X,Y,Z 40g’s 15ms, 516.6 Procedure I
-122cm 26drops, 516.6 Procedure IV
Vibration: X,Y,Z 514.6C-7
Immersion: 62IN-5005-10-8S
EMI/RFI: 10m for 1 hour, 512.5 Procedure I
TRANSCIEVER
Power Output: 2x 1W (33dBm) total
Audio Output:
-Handset: Via 7-way connector
-Internal speaker: Selectable
Audio Input:
-Handset: Via 7-way connector
-Internal microphone: Selectable
Waveform: Auto - Adaptive Modulation up to 64QAM
Bandwidth: 20 - 1.25MHz selectable or Auto
TRANSEC
Interference Avoidance (IAS):
-Token-based: flexible channel bandwidth
and variable power levels
-Low Probability of Exploitation (LPE)
-Low Probability of Detection (LPD)
-Low Probability of Intercept (LPI)
COMSEC
Encryptions: FIPS140-2 compliant AES128/AES256
DATA CAPABILITY
Bit Rates: Up to 87Mbps
