Traveling Wave Field Base Station Antenna Kit
The Travelling Wave Field Base Station Antenna is a rapid deployable wide band HF antenna. It is the ideal antenna solution for temporary base stations that needs to be deployed and moved in a short time allowing for frequency agility. The space required to deploy is a mere 25 meters and can be done by one person in less than 10 minutes once the elevation kit is installed.

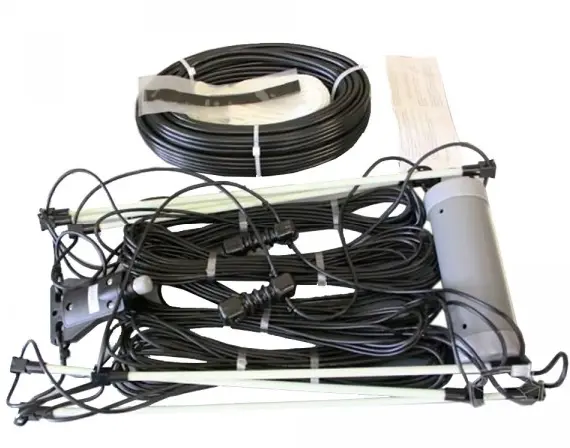

The Antenna Kit comes in a rugged canvas carry bag and includes the antenna, hoisting rope, wire end ropes and pegs to secure wire ends and a 30meter RG213 coaxial feeder. For elevation we recommend our rapid deployable 7meter elevation kit that comes complete in a canvas carry bag (ELK-PB-7m)
|
SPECIFICATIONS |
DATA |
|
Deployment: |
Inverted V, Horizontal, Sloping |
|
Power handling |
150W PEP |
|
Frequency range: |
2 – 30 MHz |
|
VSWR: |
<1:2 |
|
Vertical radiation: |
190 deg (Horizontal) |
|
Horizontal radiation: |
360 deg (Inverted V) |
|
Length to deploy: |
<25m |
|
Deploy height NVIS: |
3-7m |
|
Deploy height DX: |
7-15m |
|
Deploy Angle Inverted V: |
>100 degrees |
|
Balun Connector: |
PL258 |
|
Feeder and length: |
30m RG213 |
|
Feeder Connectors: |
PL259 / N-Type M |
|
Total Weight: |
8 kg |
|
Accessories: |
Rope, Pegs, Canvas Carry Bag |
|
Document: |
Installation guide |
